LN2 storage & transport container
We focus on liquid nitrogen container and provide best 24-service for clients. GWF brand product including:Biological Bank Tank,Laboratory Liquid Nitrogen Container,Portable Storage Liquid Nitrogen Container,Static Storage Liquid Nitrogen Container,Special Transport Liquid Nitrogen Container,Dry Shipper Liquid Nitrogen Container,LN2 Storage & transport Container,Self-Pressurized LN2 Tank,Cryogenic Protective Clothes.
Mob:+86 15516625686
Email:jasonlee@industrygw.com
Liquid nitrogen storage series containers are used to store and transport liquid nitrogen, and replenish LN2 for other containers. The mouth of the container is smooth, which facilitates the pouring of LN2. The container can also be equipped with cryogenic pump to easily extract LN2. It’s widely used for laboratories, scientific research, breeding farms, medical cosmetology, food store, industrial manufacturing, factory, etc.
PRODUCT OVERVIEW
The liquid nitrogen storage series containers is made of high strength aluminium and multi-layer super-strong heat insulation material. so that the evaporation rate of LN2 is very low, the loss of LN2 is very little. It’s the perfect container for LN2 storage and transport.
Product Advantages:
1, Ultra low LN2 evaporation loss.
2, Provides custom mouth type.
3, High strength aluminum alloy structure, light weight.
4, Super-strong heat insulation layer in vacuum between of two shells.
5, Liquid nitrogen pump is optional.
6, Vacuum warranty 5 years.
7, CE certificate, ISO certificate.

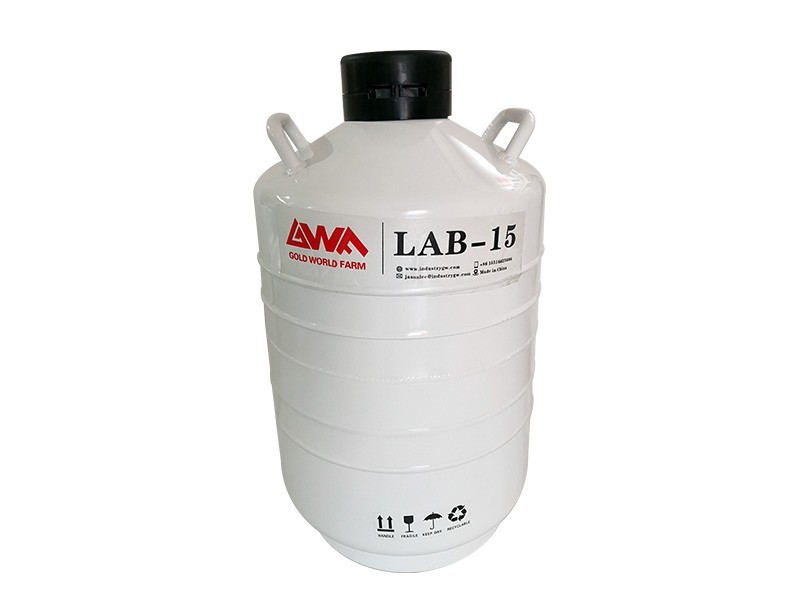

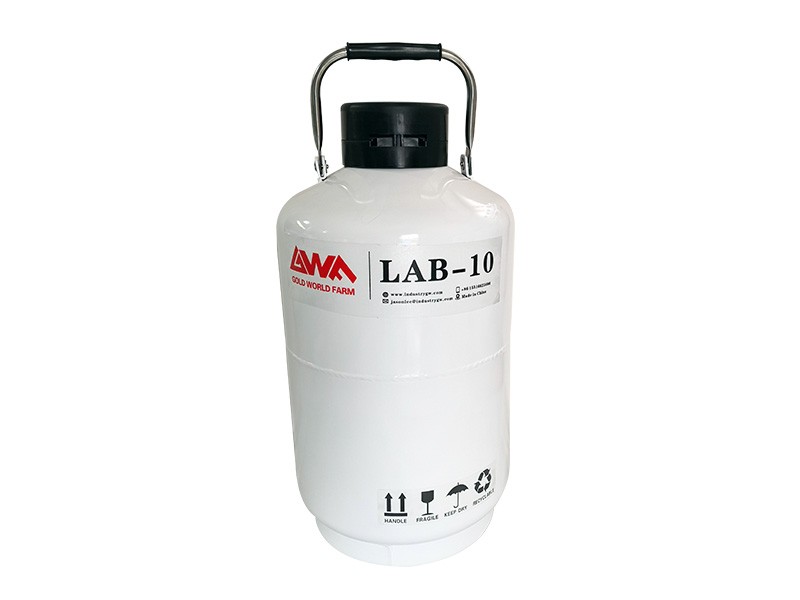

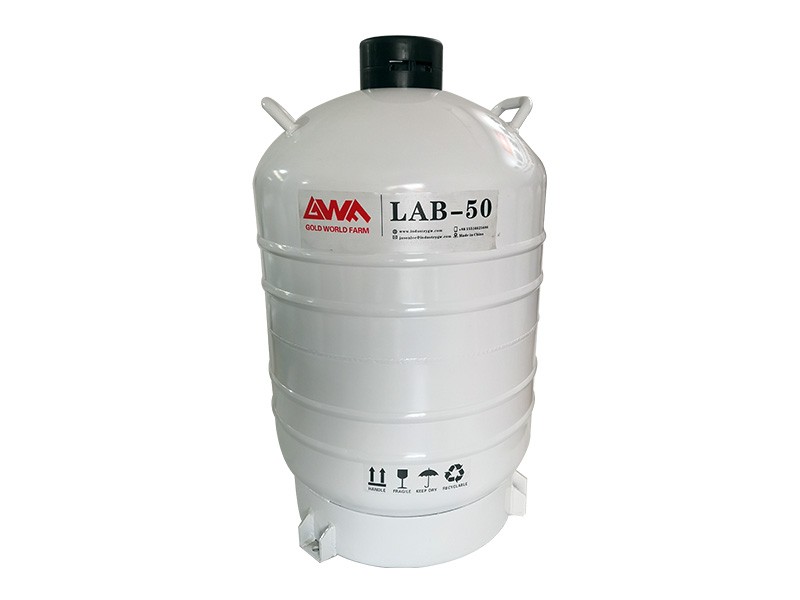

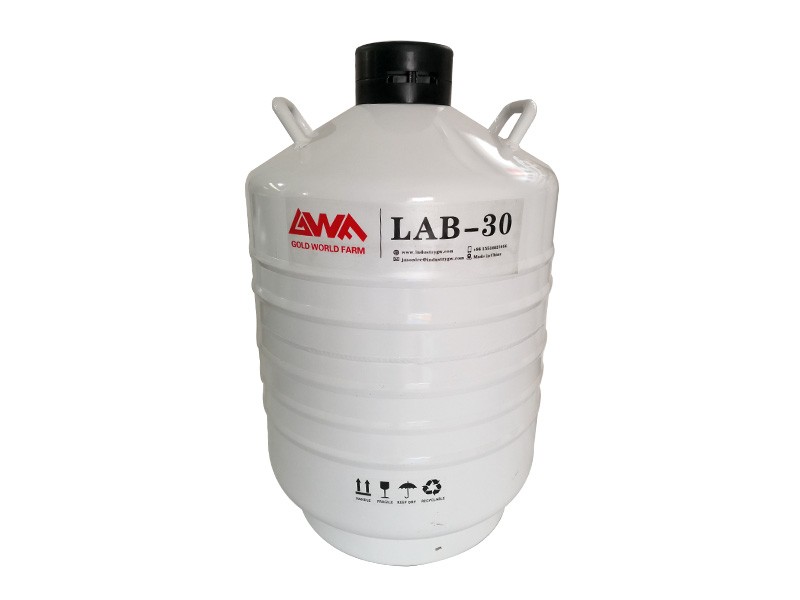

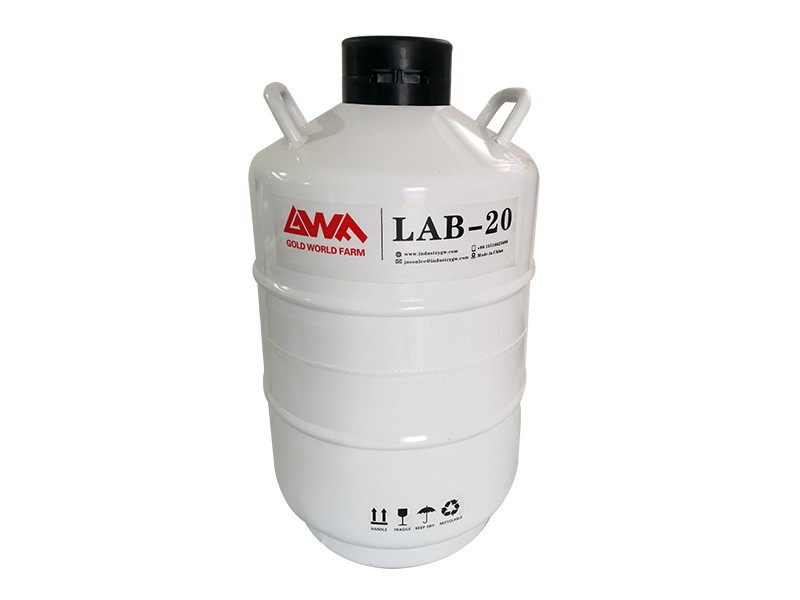

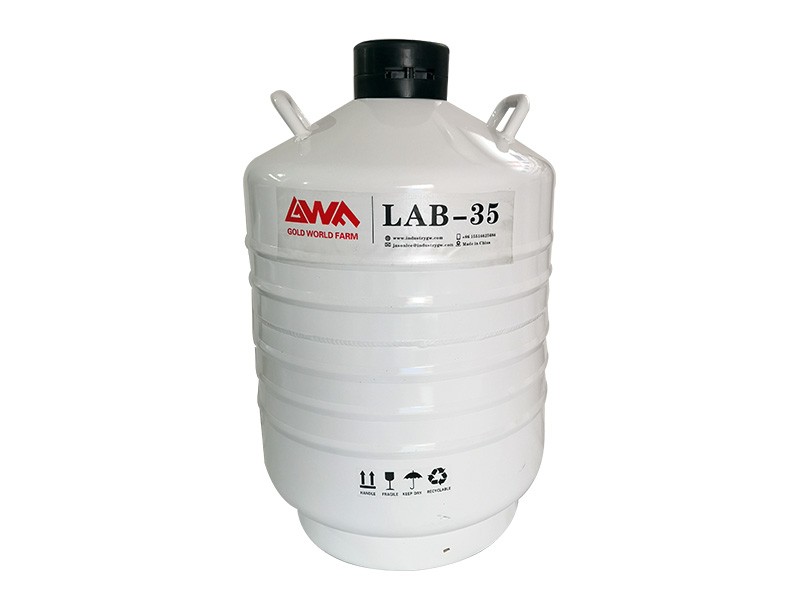

Model | LAB-3 | LAB-6 | LAB-10 | LAB-15 | LAB-20 | LAB-30 | LAB-35 | LAB-50 |
LN2 capacity (L) | 3 | 6 | 10 | 15 | 20 | 30 | 35 | 50 |
Neck diameter (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Weight empty (kg) | 3.2 | 5.0 | 5.4 | 8.1 | 8.6 | 14.0 | 15.3 | 19.5 |
Outer diameter (mm) | 220 | 300 | 300 | 360 | 360 | 435 | 435 | 495 |
Overall height (mm) | 430 | 510 | 550 | 603 | 607 | 680 | 690 | 855 |
Static evaporation rate (L/day) | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.09 | 0.20 |
Static holding time (days) | 33 | 66 | 108 | 158 | 205 | 300 | 355 | 235 |
Number of LN2 Spoon (pcs) | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Diameter of LN2 Spoon (mm) | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 | Φ38 |
High of LN2 Spoon (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
